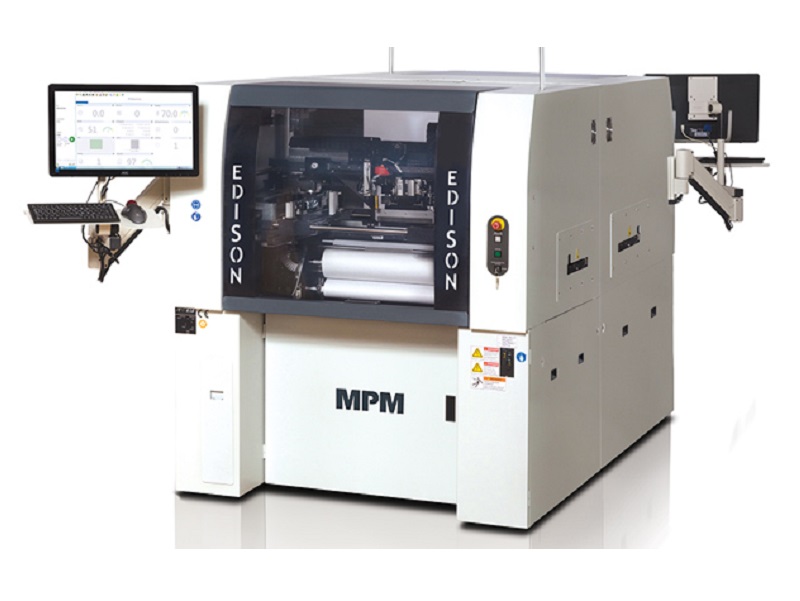

MPM Edison™ Printers
商品簡述：
Faster Throughput for a Better ProcessEdison’s new parallel processing system is extremely fast resulting in a very short cycle time. This helps increase throughput by shortening total time per PCB printed. This leaves more time for key overhead functions that have the biggest impact on print quality:
Print at slower speeds to decrease variability
Utilize slow stencil separation for optimal print definition
Double stroke after wipe
More frequent wiping resulting in higher yields
Time leftover to optimize settings for maximum possible yields
Incomparable Wet Print Accuracy
Best-in-class printing with a 25% improvement in wet print accuracy over current printers: Built-in +/- 8 micron alignment, and +/- 15 micron wet print repeatability (≥2 Cpk @ 6σ) proven through 3rd party Print Capability Analysis (PCA) testing.
Back To Back (BTB) Configurable
BTB is a flexible dual lane solution without adding line length; identical single-lane printers are easily re-deployed to other lines when needed. Use in BTB configuration, or singly as a stand-alone.
Intueri Graphical User Interface
MPM Intueri is a simple, intuitive operator interface with a flexible, wide array of configuration variables. It is combined with OpenApps for maximum capability and connectivity and provides a portal to Industry 4.0 concepts.
更多產品資料 ......
