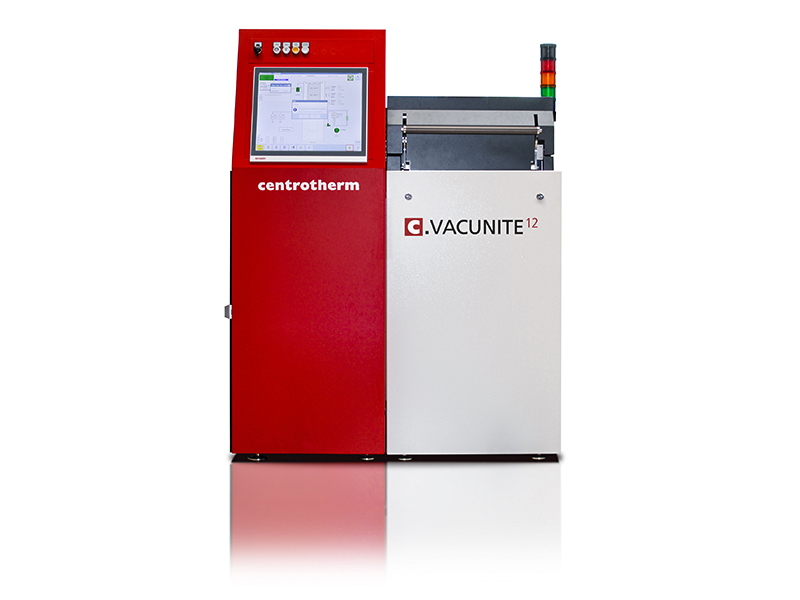

Vacuum Soldering Systems
c.VACUNITE 12|
c.VACUNITE 6
c.VACUNITE 12|
c.VACUNITE 6
商品簡述：
centrotherm c.VACUNITE 12 and c.VACUNITE 6 vacuum soldering systems have been designed for Advanced Packaging and Power Semiconductor applications and achieve very high heating and cooling rates. The systems meet the highest demands of start-ups and R&D departments which use vacuum to achieve voidless soldering joints.
With c.VACUNITE 12 and c.VACUNITE 6, the soldered area affected by voids can be reduced to less than 2% while typical reflow soldering systems range at 20%.
This system is ideally suited for production facilities and start-ups which run fluxless and voidless soldering processes with various gas atmospheres (N2, H2 100, N2/H2 95/5). centrotherm c.VLO 6 and c.VLO 12 optionally provide wet chemical activation with HCOOH or dry chemical activation with in-situ MW plasma for ultra clean soldering joints. Even lead free paste or pre-forms can be used with or without additional flux.
The process control computer comes with a user-friendly touch screen for operating, process profile editing and recipe storing. A serial interface allows to transfer data to PCs for offline programming and remote service monitoring.
Applications : Advanced Packaging, Power Semiconductors, Sealing, Soldering
Features
Process temperature up to 650°C
Process temperature up to 450°C
Excellent temperature uniformity
Heating ramp up to 80 K/min
Cooling rate up to 120 K/min
Vacuum level up to 10-5 mbar
